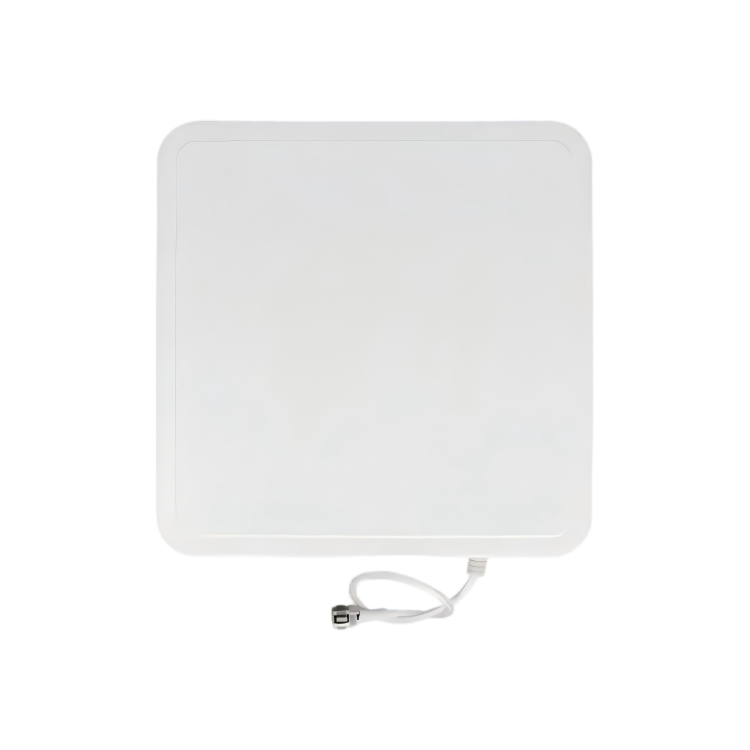

JT-D960C09A 9dBi UHF RFID Antenn
The JT-D960C09A is a high‑performance 9dBi UHF RFID antenna designed for long‑range, outdoor, and industrial applications. Covering the full 860‑960MHz frequency band, this antenna is compatible with RFID systems worldwide – including US (902‑928MHz), EU (865‑868MHz), and CN (920‑925MHz) standards. With circular polarization, a narrow beam width (H:70°, V:60°), and an impressive front‑to‑back ratio of ≥20dB, it delivers focused, reliable reads even in dense tag environments.
Built with a rugged aluminum radome and rated IP67 for waterproofing, the D960C09A is engineered for harsh outdoor conditions – from warehouse portals and vehicle gates to parking management and logistics hubs. Its N‑Female connector and standard pole mounting compatibility (φ30‑50mm) make installation quick and secure, while its 100W power handling ensures compatibility with high‑power readers.
Whether you’re building a portal‑based inventory system, a vehicle access control gate, or a long‑range logistics tracking solution, the JT-D960C09A provides the gain, durability, and reliability you need.
FEATURES
9dBi gain for extended read range and reliable tag capture
Narrow beam width (H:70°, V:60°) for focused coverage – reduces stray reads
Front‑to‑back ratio ≥20dB – minimizes interference from behind the antenna
Frequency range: 860‑960MHz
Covers US (902‑928MHz), EU (865‑868MHz), CN (920‑925MHz), and other global bands
One antenna works across multiple regions – ideal for international deployments
Reads tags regardless of orientation – no need to align tags perfectly
Reduces missed reads in high‑speed or high‑density environments
IP67 waterproof rating – dustproof and protected against immersion
Aluminum radome – lightweight yet durable, corrosion‑resistant
Rated wind velocity: 50m/s – withstands strong winds
Operating temperature: ‑20°C to +60°C
Applications
Warehouse & Logistics – Portal‑based inbound/outbound scanning, conveyor belt reading
Door Control & Access – Vehicle gates, personnel entry points, and barrier systems
Parking Management – Automatic vehicle identification at entrances and exits
Supply Chain – Long‑range pallet and carton tracking in distribution centers
Retail – Inventory management and loss prevention at store doorways
Industrial IoT – Asset tracking in manufacturing and outdoor yards
Event Management – Participant tracking and access control at sports events
Faster Data Processing
PC-Free Operation
Sharper Prints
Connection Stability
Technical Specifications
Gain
9 dBi
Impedance
50Ω
F/B Ratio
≥20
Radome Material
Aluminum
Pole Diameter
φ30‑50 mm
Rated Wind Velocity
50 m/s
Waterproof Rate
IP67
Frequency
840‑960 MHz (global coverage)
Protocol
ISO18000‑6C (EPC C1G2)
Dimensions
260 x 260 x 30 mm / 10.24 x 10.24 x 1.18 in
