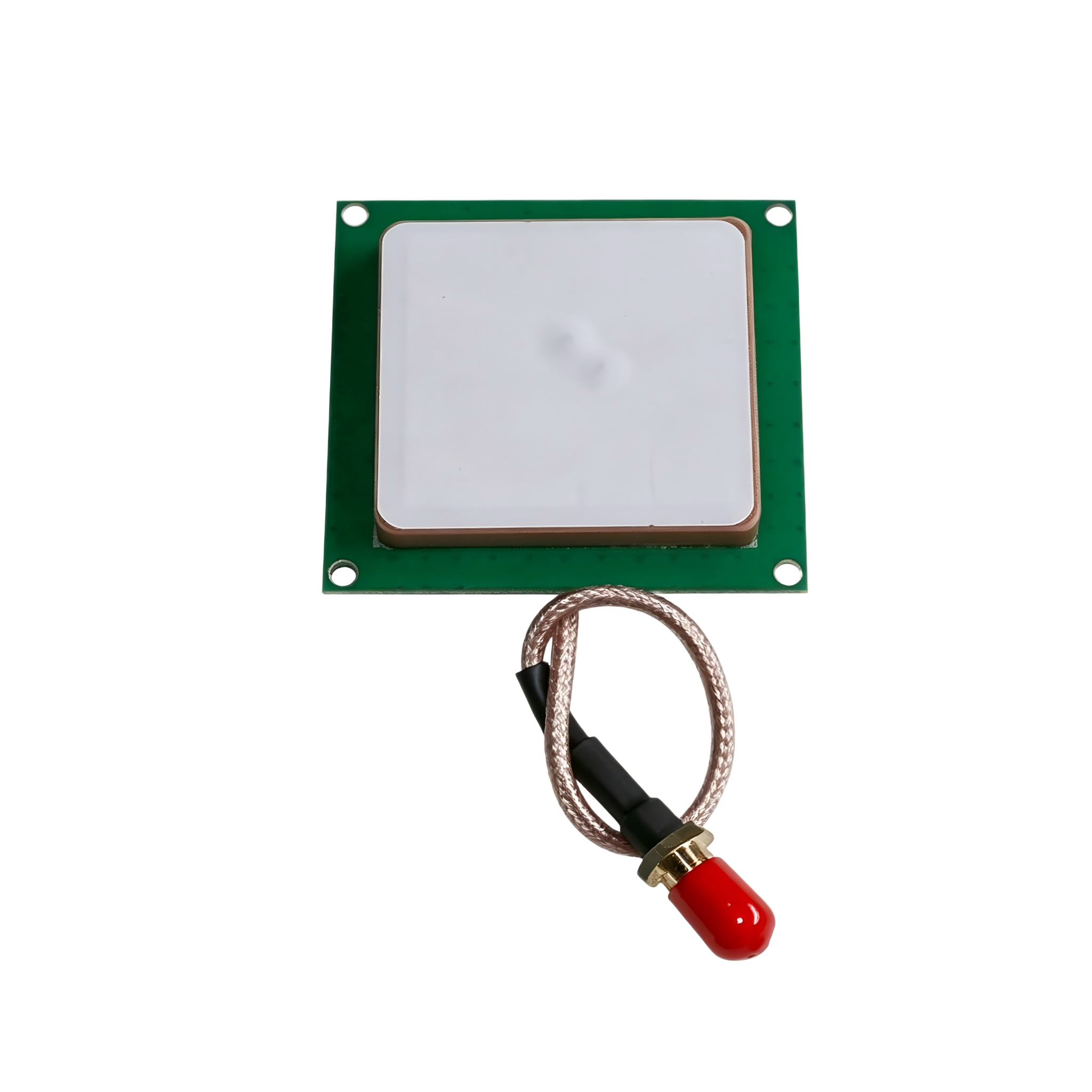

JT-KRT6070S 5dBi Ceramic UHF RFID Antenna
The JT-KRT6070S is a compact, high‑performance 5dBi ceramic UHF RFID antenna designed for space‑constrained integrations where small size and reliable performance are essential. Operating at 915MHz (US) and 866.5MHz (EU) frequencies with circular polarization, this antenna delivers consistent tag reads regardless of tag orientation – making it ideal for handheld readers, desktop encoders, RF readers, and Internet of Vehicles (IoV) devices.
With a ceramic core dimension of just 60 x 60 x 5 mm and an overall footprint of 70 x 70 mm, the JT-KRT6070S offers excellent gain in a miniature package. Its ceramic + PCB construction ensures durability and stable RF performance across a wide operating temperature range (-20°C to +60°C). Available with various terminal and SMA connector options, this antenna integrates easily into a wide range of RFID devices and systems.
Whether you’re designing a next‑generation handheld reader, a compact desktop encoder, or an automotive RFID module, the JT-KRT6070S delivers the gain, polarization, and compactness you need.
FEATURES
Ceramic core: 60 x 60 x 5 mm – ultra‑thin for embedded integration
Overall footprint: 70 x 70 mm – minimizes PCB space requirements
Lightweight and durable for portable and fixed devices
5dBi gain for reliable, extended‑range reads in a small form factor
Circular polarization – reads tags regardless of orientation
Low axial ratio ≤5dB for consistent circular performance
Supports 915MHz (US standard) and 866.5MHz (EU standard)
One antenna covers both major RFID frequency bands
Compatible with global UHF RFID systems
Available with various terminal and SMA connector options
Flexible integration into different reader designs
Standard 50Ω impedance
Applications
Handheld Readers – Integrated into portable UHF RFID readers and scanners
Desktop Readers – Embedded into desktop encoders and workstations
RF Readers – Fixed and mobile RFID reading devices
Internet of Vehicles (IoV) Devices – Vehicle identification and tracking systems
Access Control – Compact readers for entry points and gates
Retail POS – Point‑of‑sale RFID integration
Industrial IoT – Embedded readers for asset tracking and monitoring
Faster Data Processing
PC-Free Operation
Sharper Prints
Connection Stability
Technical Specifications
Gain
5 dBi
Polarization
Circular
Axial Ratio
≤5dB
Impedance
50Ω
Connector
Various terminal options / SMA Connector
Radome Material
Ceramic + PCB
Operating Temp
-20°C to +60°C / -4°F to 140°F
Frequency
915MHz / 866.5MHz
Flexible connector options
Easy integration into any reader design
Dimensions
60 x 60 x 5 mm / 2.36 x 2.36 x 0.20 in
