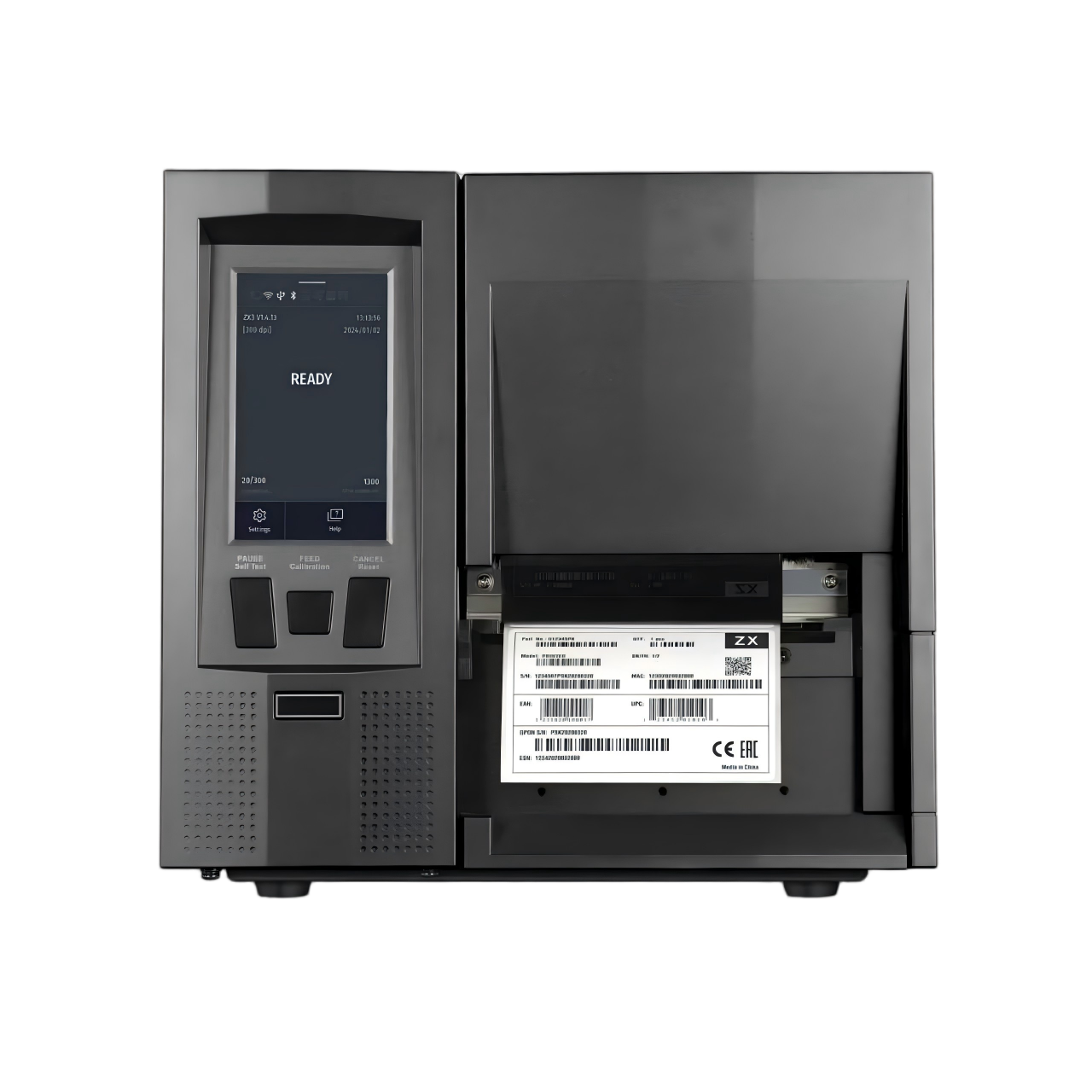

JT-MR243 Smart RFID Printer

Discover the JT-MR243: A 4.5" touchscreen industrial printer delivering 300dpi resolution at 12ips. Powered by HEAT technology and featuring optional RFID verification, it now supports anti-metal tag printing for challenging environments. Streamline your workflow today.

The JT-MR243 redefines industrial printing with a bold fusion of speed, intelligence, and durability. Designed for the modern factory floor, it features a vibrant 4.5-inch color touchscreen that puts full control at your fingertips—eliminating the need for external PCs. With blistering 12-inch-per-second speeds, 300dpi precision, and newly added support for anti-metal tag printing, this printer is engineered to handle your most demanding labeling tasks with ease.

  • ⚡ Lightning Fast: 12 ips (304.8 mm/s) printing speed keeps up with high-volume production lines.
  • 👁️ Smart Visuals: 4.5″ Color Touchscreen provides a clear, intuitive interface for standalone operation.
  • 🛡️ Built to Last: Industrial-grade fixed frame structure ensures stability and longevity in harsh environments.

FEATURES

Intelligent Touch & Processing
  • All-in-One Control: Manage jobs, check media, and calibrate directly via the large capacitive touchscreen.
  • Quad-Core Power: Features a 1.8GHz Cortex-A53 processor and 2GB DDR4 RAM for instant data processing.
HEAT Technology
  • Grade 1 Precision: Proprietary HEAT tech ensures perfect thermal balance across the print head.
  • Sharper Prints: Delivers crisp barcodes at high speeds while extending printhead lifespan.
ADAPT Auto-Calibration
  • Zero Drift: Automatically compensates for roller wear or media thickness changes.
  • Consistency: Guarantees perfect print registration, reducing waste and maintenance.
Rigorous RFID Verification
  • 100% Accuracy: Built-in system instantly verifies data right after printing.
  • Error Prevention: Rejects faulty tags immediately to prevent costly logistics errors.

Powered by an enhanced quad-core processor (1.8 GHz Cortex-A53 + 2GB DDR4 RAM) and 8GB Flash memory, the JT-MR243 delivers 100% PC-free touchscreen intelligence, 50% faster printing, 300dpi HEAT™ precision, and industrial reliability with ADAPT™ auto-calibration.

Core Upgrades (JT-MR243 vs. JT-ZR343)

400
Memory Boost
50
Faster Printing
100
Print Precision
100
PC-Free Operation

Technical Specifications

Print Method

Thermal Transfer / Direct Thermal

Resolution

300 dpi

Max Print Speed

12 ips (304.8 mm/s)

Max Print Width

4.16″ (105.7 mm)

Processor

64-bit Quad-Core (Cortex-A53), 1.8GHz

Memory

2GB DDR4 RAM, 8GB Managed NAND Flash

Display

4.5″ LCD Capacitive Touchscreen

Interfaces

Gigabit Ethernet (10/100/1000Mbps), RS-232, USB Host/Device

RFID Support

UHF EPC Gen 2, ISO 18000-6C

Dimensions

11.3″ W x 17.6″ D x 10.7″ H (286 x 448 x 271 mm)

Weight

15 kg (33.07 lbs)
