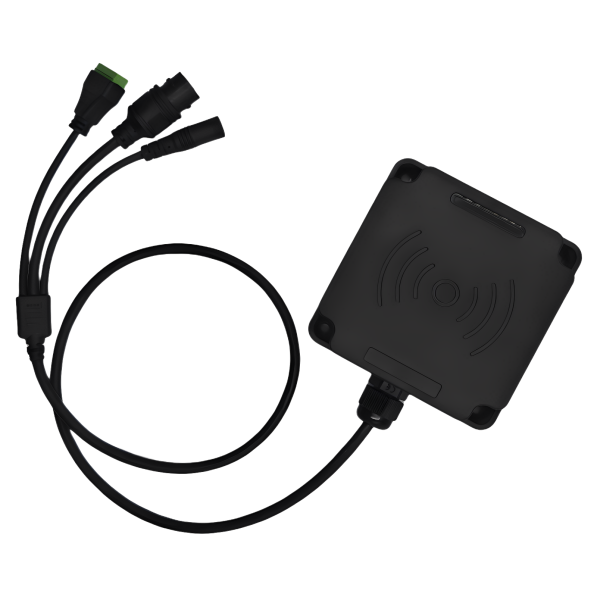

JT‑RFR9010 Integrated UHF RFID Reader
The JT‑RFR9010 is a compact, integrated UHF RFID reader that combines a high‑performance RF module with a built‑in antenna in a single, rugged enclosure. Powered by either an Impinj E710/R2000 or a domestic chipset (optional), this reader delivers outstanding read performance with adjustable output power up to 33dBm and read ranges reaching 35 meters (depending on antenna gain and tag type). Its small footprint (90 x 95 x 35 mm) and lightweight design (0.5 kg) make it easy to mount on walls, ceilings, equipment racks, or conveyor frames.
The JT‑RFR9010 supports multiple operating modes (active, passive, trigger) and offers a rich set of communication interfaces including RS‑232, optional RS‑485, and RJ45 Ethernet (10/100Mbps), with optional POE+ power for single‑cable installation. With support for RSSI, temperature monitoring, and antenna protection, this reader is engineered for reliable 24/7 operation in warehouse logistics, asset tracking, production lines, and access control applications.
FEATURES
Built‑in antenna – no external antenna required for standard deployments
Dimensions: 90 x 95 x 35 mm – space‑saving and easy to install
Weight: 0.5 kg – lightweight for flexible mounting
Durable ABS housing suitable for industrial environments
Chipset options: Impinj E710/R2000 or domestic chip (selectable)
Output power: 0–33dBm adjustable (±1dB precision)
Read range: up to 35 meters (tag and environment dependent)
Read rate: >300 tags/sec (optional >1000 tags/sec)
Receive sensitivity: <‑85dBm
Supports EPC C1G2, ISO18000‑6C, and optional ISO18000‑6B
Serial: RS‑232 + optional RS‑485
Ethernet: RJ45 10/100 Mbps
Optional POE+ (802.3at, 25.5W) for power and data over a single cable
Supports multiple industrial protocols (HTTP, MQTT, TCP, UDP, UART)
Full SDK for Windows, Android, Linux
Supports development in C, C#, Java, Python, and more
Rich protocol options: HTTP, MQTT, TCP, UDP, UART – flexible integration with cloud and on‑premise systems
Applications
Warehouse & Logistics – Conveyor belt scanning, portal‑based inbound/outbound tracking
Asset Management – Fixed asset tracking in data centers, offices, and factories
Production Lines – Work‑in‑process tracking, quality control, tool management
Retail – Inventory management, loss prevention, shelf monitoring
Access Control – Personnel and vehicle identification at entry points
Smart Manufacturing – Integration with MES and SCADA systems
Parking & Tolling – Vehicle identification and automated entry
Faster Data Processing
PC-Free Operation
Sharper Prints
Connection Stability
Technical Specifications
Material
ABS plastic
Mounting
Wall, ceiling, or equipment mounting options
Serial
1 x RS‑232, 1 x RS‑485 (optional)
Ethernet
1 x RJ45, 10/100 Mbps
SDK
Full SDK provided
Power
DC 9‑24V (12V/3A recommended) or POE+ 802.3at (optional)
Chipset
Domestic or Impinj E710/R2000 (selectable)
Frequency
865‑868MHz (EU) / 920‑925MHz (CN) / 902‑928MHz (US)
Protocol
EPC C1 G2 / ISO18000‑6C
Dimensions
90 x 95 x 35 mm / 3.54 x 3.74 x 1.38 in
