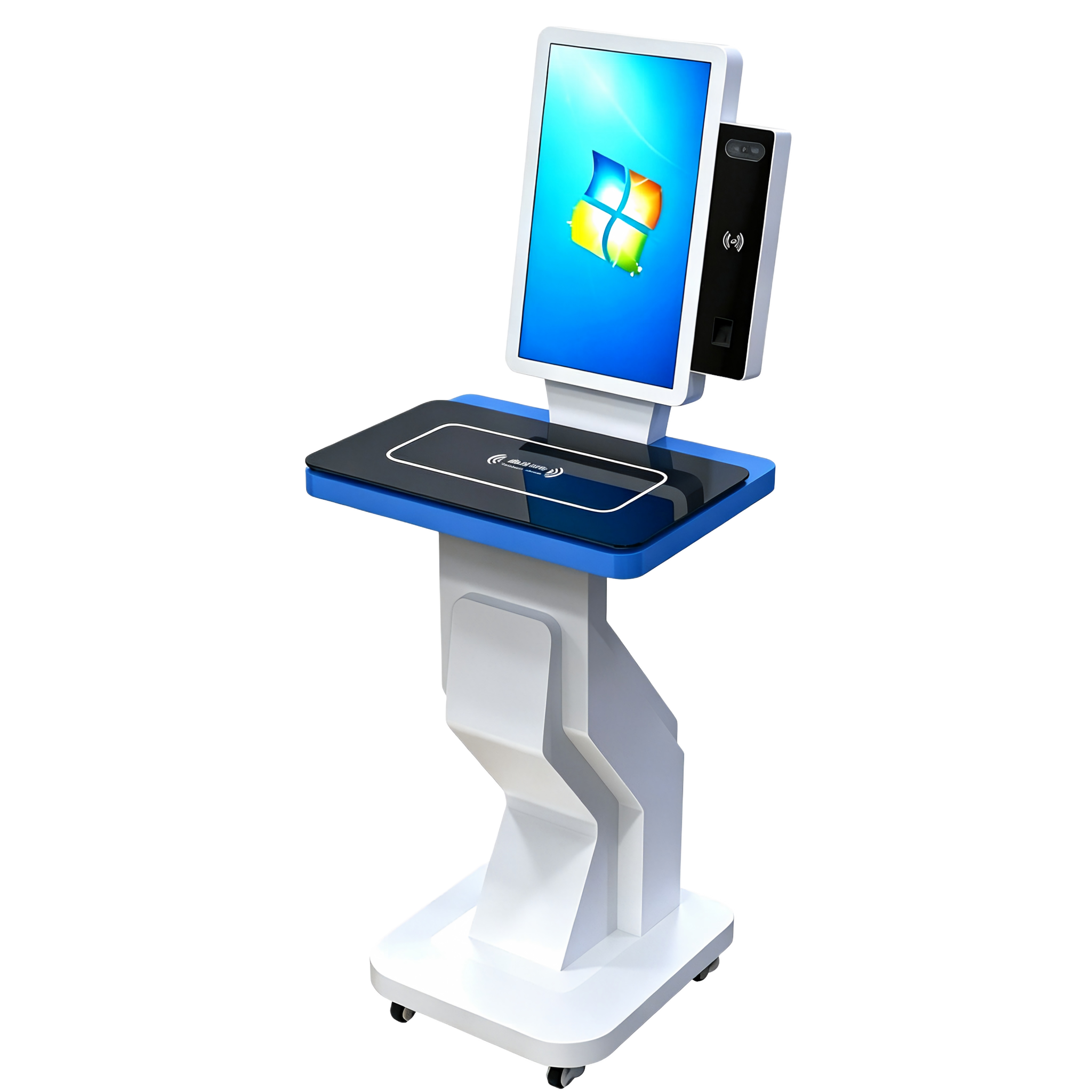

JT-RGZ01 RFID Checkout Terminal
The JT-RGZ01 is a high-performance, self-service item settlement terminal and handover kiosk designed to streamline the transfer of files, archives, and documents between parties. Supporting ISO18000-6C (EPC C1G2) protocols and leveraging advanced UHF RFID technology, this intelligent kiosk automates the entire handover process — from identity verification to batch document scanning and digital record keeping.
With a built-in 21.5-inch industrial touchscreen, integrated camera, RFID scanner, ID card reader, and fingerprint sensor, the JT-RGZ01 enables secure, auditable, and efficient document handovers without requiring staff intervention. It can read 20+ tags per second and reliably scan 10+ documents in a single batch — dramatically reducing the time and effort required for manual check-in/out processes.
The kiosk is designed for 24/7 unattended operation, with a sleek, space-saving footprint and caster wheels for easy repositioning. The system supports software-based shutdown permissions to prevent unauthorized power-off, and it integrates seamlessly with existing banking, archive, and document management systems via TCP/IP and Wi‑Fi.
FEATURES
Provides round‑the‑clock, unattended document handover services
One‑touch operation for receiving documents — simple and efficient
Reduces staff workload and improves service availability
ID card reader (13.56MHz,二代证 frequency)
Fingerprint scanner for biometric verification
Integrated camera for on‑site image capture of both parties
Ensures secure, non‑repudiable handover transactions
Reads 20+ tags per second for efficient batch processing
Batch capacity: 10+ documents per scan (depending on tag placement)
Custom‑designed antenna array controls read range and direction
Prevents stray reads and misreads for a smooth user experience
21.5‑inch capacitive touchscreen with high resolution (≥1024×768)
Clear, intuitive interface for step‑by‑step handover guidance
Real‑time visual feedback for every operation
Applications
Bank & Financial Institutions – Secure handover of loan files, customer documents, and contract archives between branches or to customers
Government Archives – Self‑service document receipt and transfer between departments and external parties
Corporate Record Centers – Employee file handover, HR document delivery, and legal document exchange
Legal & Law Firms – Secure exchange of case files, evidence, and client documents
Healthcare – Medical record handover between departments, hospitals, and patients
Educational Institutions – Student record delivery, transcript distribution, and administrative document handover
Faster Data Processing
PC-Free Operation
Sharper Prints
Connection Stability
Technical Specifications
CPU
I3‑3217U, 2.2GHz
Protocol
ISO18000‑6C (EPC C1G2)
Frequency
902 – 928 MHz
Material
Sheet metal
Batch Capacity
≥10 documents per scan
Mobility
Caster wheels
Display
21.5‑inch touchscreen, ≥1024×768
Read Speed
≥20 tags per second
Protocol
ISO18000‑6C (EPC C1G2)
Operating System
Windows 10
